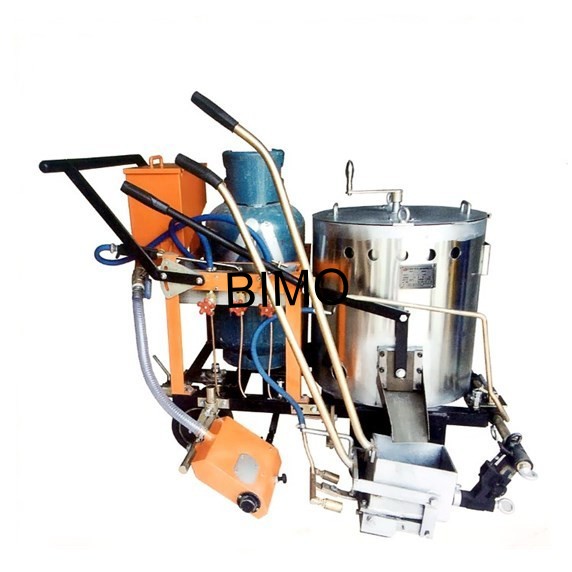

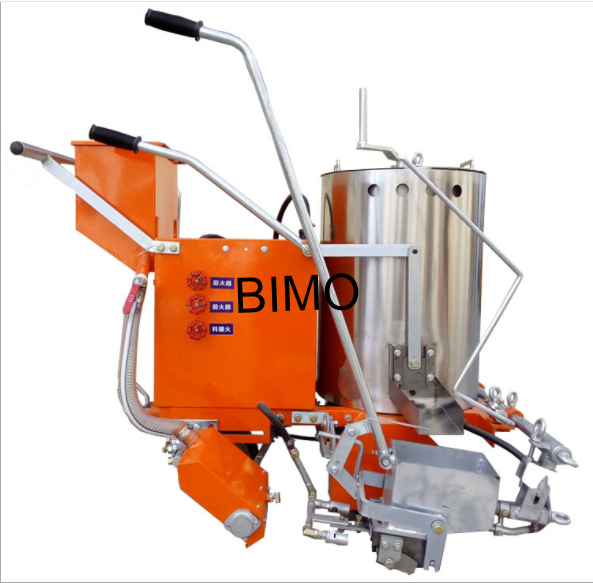

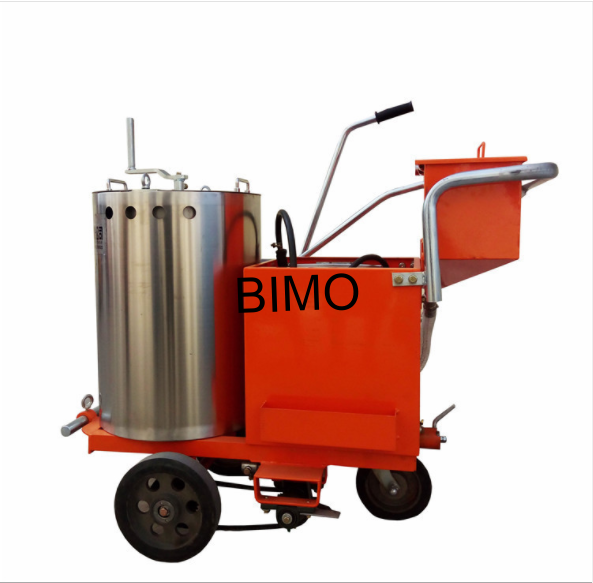

Hot melt Convex heat fusion
thermoplastic street scribing machine
Dimension - 1350mm * 850mm * 1000mm
Weight -120kg
Barrel volume -100kg
Glass box volume -10kg
Heating temperature -0~250 degree
Heating method -burning liquefied petroleum gas in the bucket to heating
Coating width -150mm, 200mm, 300mm, 400mm, 450mm
Thickness of the road line - 1.5~3mm
Work speed-1.2~1.5km/h

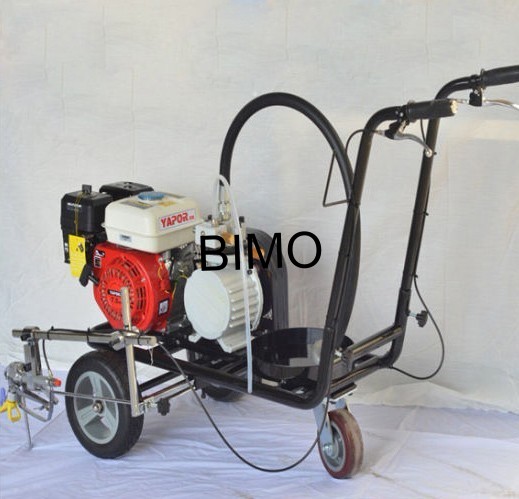

Cold Spray street scribing machine
Dimension - 850mm * 425mm * 800mm
Marking width 50 ~ 450mm (adjustable)
Spraying thickness of 0.2 ~ 0.5mm
Paint pump maximum flow : 8L/min
Max output pressure : 25Mpa
Max. Nozzle Size: 0.028"
High pressure pipe length : 15m
Tank capacity: 10L
Weight -75kg
